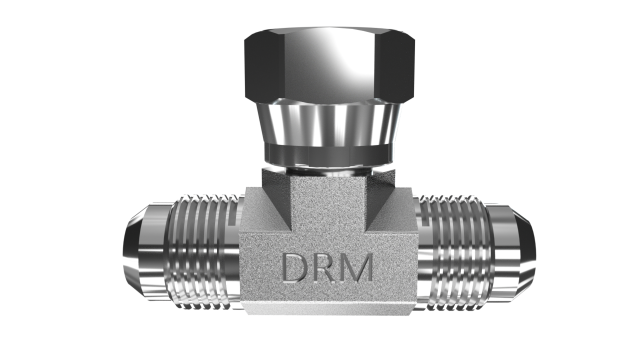

DREHMEISTER T-piece 3/4"-16 UNF thread for LPG filling hose - enables the simultaneous refuelling of two gas cylinders orLPG tanks. The T-piece can be attached to the cylinder or tank side as well as to the filling valve.
This T-piece is equipped with two 3/4"-16 UNF external threads and a 3/4"-16 UNF internal thread and is used to connect LPG fuelling hoses. It is often used to connect an LPG filling point to two refillable gas bottles operated in parallel.
DREHMEISTER products are manufactured from high-quality materials and are characterised by precise workmanship. This ensures optimum fitting accuracy, high tightness and maximum safety when refuelling LPG.
Technical data:
- Thread: 2x 3/4"-16 UNF male thread, 1x 3/4"-16 UNF female thread
- Material: galvanised steel
- Dimensions: 50 mm x 40 mm x 20 mm
- Weight: 150 g
- Maximum operating pressure: 30 bar
- Temperature range: -20 °C to +70 °C
