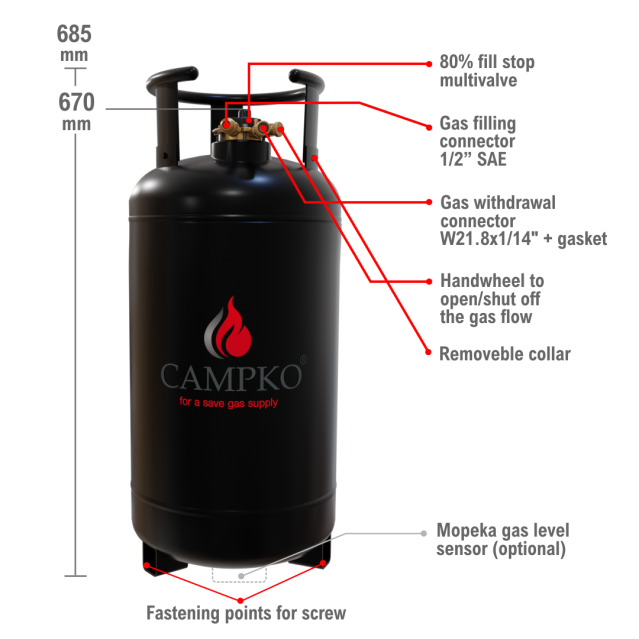

CAMPKO is a refillable steel LPG cylinder designed for permanent installation in the gas compartment of a camper, caravan, or camper van. Its built-in multivalve automatically limits filling to 80% of the total volume, thereby leaving the necessary reserve for the safe expansion of the gas. The multivalve also includes an overpressure safety valve.
For the cylinder with a gross volume of 36 liters, the maximum amount at 80% fill is 28.8 liters of LPG. The cylinder features separate connections for filling and gas withdrawal and can be used individually or as part of a system with more than one cylinder.
Technical specifications:
- Material: steel
- Gross volume: 36 L
- Usable volume at 80%: 28.8 L
- 80% automatic fill stop
- Safety valve: 27 bar
- Level indicator: yes
- Option for remote level monitoring
- Filling inlet: 3/4"-16 UNF
- Outlet DE: G.12 / W21.8 × 1/14" LH
- Diameter: 300 mm
- Height: 685 mm
- Height without protective collar: 670 mm
- Homologation: ECE 67R-01
Technical specifications
| material | steel |
| Service life | 10 years |
| 80% fill stop | included |
| Safety valve | 27 bar safety valve |
| Empty weight | 16.00 kg |
| Filling and withdrawal | separate |
| Full level indicator | available |
| Remote display | possible |
| Inlet | 3/4"-16UNF external thread |
| Outlet | G.12 = W21.8 x 1/14 left (with gasket) |
| Volume (gross) | 36.00 liters |
| Volume (net) | 28.80 liters |
| Total height | 685 mm |
| Height without collar | 670 mm |
| diameter | diameter 300 mm |
| Homologation | ECE 67R-01 |
